Data Center Fiber Optic Cables
Why Fiber Optics?
Data centers are the backbone of our digital world, and fiber optic cables are the nervous system that connects everything within them. These cables use pulses of light to transmit data, offering immense advantages over traditional copper cables, including higher bandwidth, longer transmission distances, and immunity to electromagnetic interference. Choosing the right fiber is critical for ensuring a data center can meet the ever-increasing demands for speed and reliability.
Core Fiber Types: Single-Mode vs. Multi-Mode
Single-Mode Fiber (SMF)
OS1 / OS2
Single-Mode fiber has a very small core (around 9 micrometers) that allows only one mode, or ray, of light to travel through it. Think of it as a laser pointer in a perfectly straight, narrow tunnel. This eliminates distortion over long distances.
Key Characteristics:
- Best for: Long-haul connections (connecting buildings, campuses, or metro networks).
- Advantage: Virtually unlimited bandwidth and can carry signals for many kilometers without losing quality.
- Disadvantage: The required light sources (lasers) are more expensive, making SMF systems costlier upfront.
Multi-Mode Fiber (MMF)
OM1 / OM2 / OM3 / OM4 / OM5
Multi-Mode fiber has a larger core (50 or 62.5 micrometers) that allows multiple modes of light to travel through it simultaneously. Imagine this as multiple beams of light bouncing off the walls of a wider tunnel.
Key Characteristics:
- Best for: Short-distance links within a data center (e.g., connecting servers to switches in the same rack or row).
- Advantage: Uses cheaper light sources (LEDs or VCSELs), making it a more cost-effective solution for shorter runs.
- Disadvantage: Subject to modal dispersion, which limits its effective distance and bandwidth compared to SMF.
A Closer Look at Single-Mode Fiber (SMF) Generations
Single-Mode fiber standards are simpler than Multi-Mode, primarily differing in cable construction and performance over distance, which affects their ideal use case.
| Type | Jacket Color | Core Size | Common Use | Max Distance (Approx.) |
|---|---|---|---|---|
| OS1 | Yellow | 9 µm | Indoor / Campus (1G/10G) | ~10 km |
| OS2 | Yellow | 9 µm | Outdoor / Long-Haul (40G/100G+) | Up to 200 km |
A Closer Look at Multi-Mode Fiber (MMF) Generations
As data speeds have increased, Multi-Mode fiber has evolved. Newer generations are optimized to carry higher bandwidth over longer distances within the data center.
| Type | Jacket Color | Core Size | Common Use | Max Distance (Approx.) |
|---|---|---|---|---|
| OM1 | Orange | 62.5 µm | 1G Ethernet | ~275 meters |
| OM2 | Orange | 50 µm | 1G Ethernet | ~550 meters |
| OM3 | Aqua | 50 µm | 10G / 40G | 300m / 100m |
| OM4 | Aqua / Violet | 50 µm | 40G / 100G | 400m / 150m |
| OM5 | Lime Green | 50 µm | 40G / 100G (SWDM) | ~440m / 150m |
Common Connector Types
LC (Lucent Connector)
A small form-factor connector, very popular in data centers for its high-density capabilities. Often used for 1G and 10G connections.

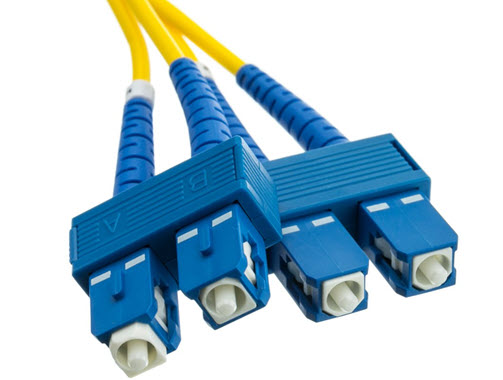

SC (Subscriber Connector)
A snap-in connector that is easy to use. While still present, it's often being replaced by the smaller LC connector in dense environments.

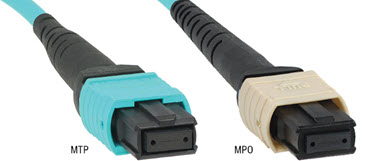

MPO/MTP Connector
A multi-fiber connector that can hold 12, 24, or more fibers in a single interface. Essential for high-speed 40G and 100G parallel optics.
Specialty & High-Density Cabling

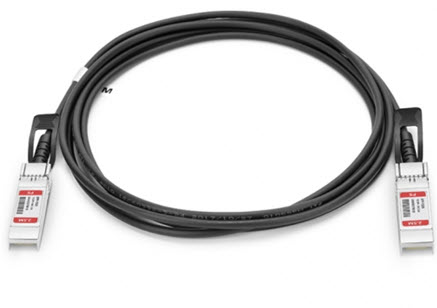

Twinax / DAC Cables
Direct Attach Copper (DAC) cables are a fixed assembly of a shielded copper cable with transceivers factory-mounted on each end. They plug directly into SFP+, QSFP+, and other high-speed ports.
Key Characteristics:
- Best for: Very short connections (up to ~7 meters) inside a single rack.
- Advantage: Extremely low cost, low power consumption, and minimal latency.
- Disadvantage: Bulky, heavy, and susceptible to EMI compared to fiber.

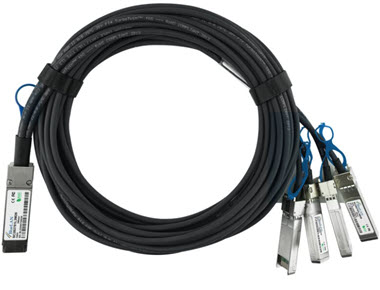

Breakout Cables
These cables "break out" a high-speed port into multiple lower-speed ports (e.g., 40G into 4x10G). This is primarily done with fiber cables using MPO to LC connectors.
Key Characteristics:
- Best for: Increasing port density and connecting switches to multiple servers.
- Advantage: Maximizes switch hardware use and simplifies cabling.
DAC Breakout Version: For short, in-rack connections, copper-based DAC breakout cables are a cost-effective alternative to fiber.
